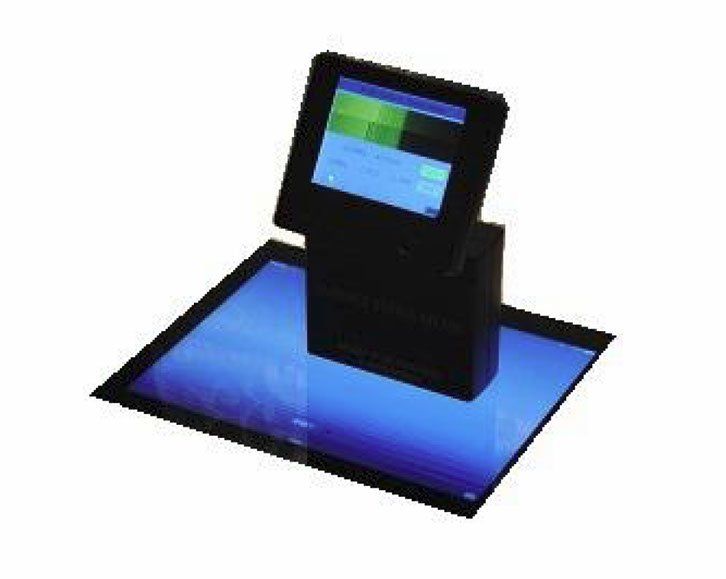

DSR for Chemically

tempered glass JF-2

Used for:

Differential Surface Refractometer to measure the depth of layer and the surface stress of chemically tempered glass.

Conforms to:

ASTM C1422

Technical characteristics:

Automated measurement
Can be connected to a PC with software support for measurement management and data recording
Refractive index range: 1.47~1.53 (other RI range customized according to requirement)
Stress: up to 1000 MPa
Depth of layer: 10- 100µm
Accuracy: 20 Mpa/5µm
Wavelength: 590nm
Touch screen: 3.5”
