Non contact sheet resistance analyser

Used for:

Low-E layer sheet resistance and glass emissivity measurement, low-E layer thickness measurement.



Application:

Architectural low E glass

Smart-glass applications

Photovoltaics, …



Principle of operation:

• gives sheet resistance (Ohm/sq)
• metal layer thickness (nm, µm)
• metal substrate thickness (µm)



Features contact free, also available in-line: for glass coaters: to check the quality of the coating after the coating process. For glass temperers: to check the quality of the coating after tempering process.



Technical characteristics:

• Non contact eddy current sensor
• Max sample thickness : 1-25mm
• Sheet resistance range: three ranges going from 0.0001 to 100,000 Ohm/sq
• thickness measurement range: 2nm-2mm
• dimensions: 290x140x445 mm; 10kg

Option:

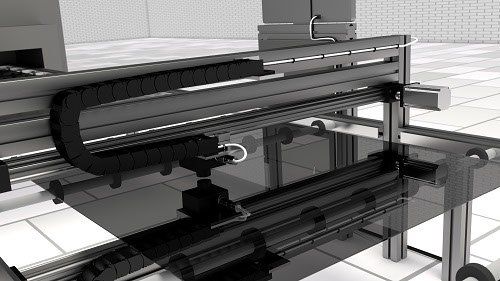

Inline version

ON LINE

for architectural glass temperers who buy a ready-coated glass: to check the quality of the in-coming glass coating.
