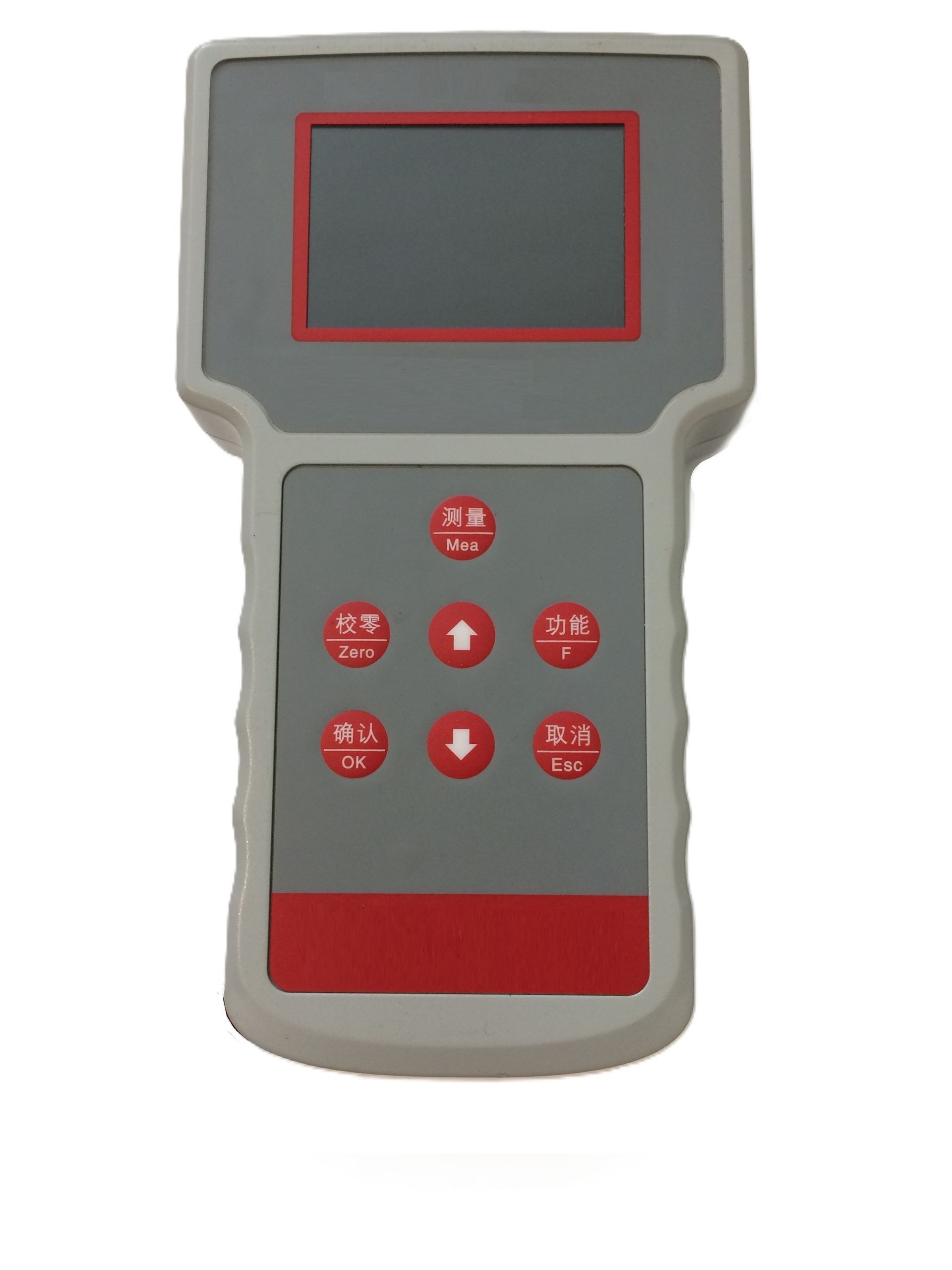

U Value Meter For

LOW-E IGU

Used for:

Measuring the U value (or K value), Low-E position and structural parameters of double or triple glazing units.

It is portable, simple and measures fast. It is especially suitable for on-site measurement of existing building glass, doors and windows.



Conforms to:

SO 10292, EN673, JGJ/T 151, ISO 15099, NFRC 100.



Principle of operation:

Non-destructive measurement of the U value

Identifies the Low-E position, Measures the U value of double or triple glazing units.

Argon content must be added manually.

Portable instrument, rechargeable built-in lithium battery, suitable for on-site measurement.

It can accurately measure the thickness of triple glazing units, and identify the Low-E position

Features:

It cannot test the gas type and volume concentration of IG. This information is input manually in the formula.



Technical characteristics:

Dimensions               240x135x50mm

Measurable side        glass side or low E side

Maximum thickness  50mm

Accuracy:

• Thickness                   ±0.05mm, total thickness ≤10mm

   ±0.1mm, 10mm<total thickness ≤20mm ±0.2mm, 20mm<total thickness ≤40mm ±0.03mm, total thickness >40mm

• U-Value                      ±0.1 (K≤2.0)      ±0.2 (K≥2.0).
