QUALITY CONTROL
EQUIPMENT

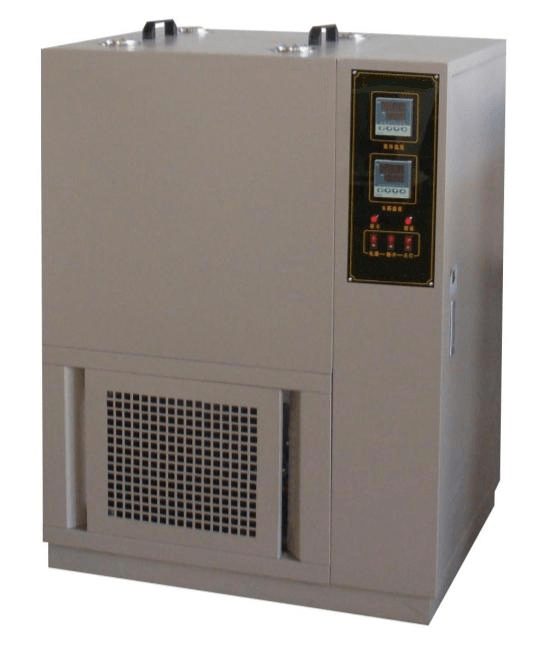

UV-radiation chamber EN1279-4 A and C
Used for:
performing the resistance to radiation test on IG units. The purpose of the test is to evaluate if any unacceptable condensation appears on the glass surfaces facing the cavity of an IGU due to release of volatile substances from components or inserts.
Conforms to:
EN 1279-4 annex A and C, ASTM E2189
Features:
With cooling plate in conductive material.
Technical characteristics:
Voltage : 220V±10%
Power : 3KW
Radiation source : 300W Osram Ultra-Vitalux Lamp
Cooling : copper cooling plates
Temperature of the working area : 50±3°C
Temperature uniformity : ≤3°C
