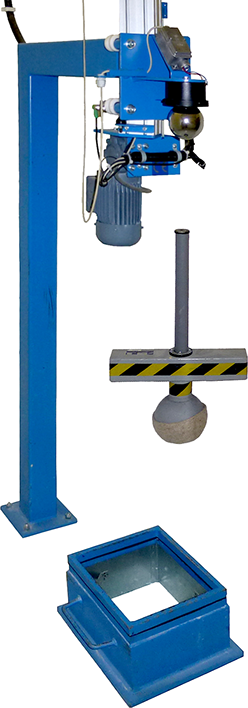

Dropping Test equipment

SUPPORT 300X300



Supporting fixture for test pieces of 300x300 mm for ball-impact tests. It conforms to ECE-R43 regulations.

(Annex 3, paragraphs 2.1.1.3 and 2.2.1.3)



SMALL BALL



Hardened-steel ball of 227 g ∆ 38 conforms to ECE-R43 regulations. (Annex 3, paragraph 2.1.1.1)



LARGE BALL



Hardened-steel ball of 2260 g ∆ 82 conforms to ECE-R43 regulations. (Annex 3, paragraph 2.2.1.1)



SUPPORT 500X1100



Flat test piece support for head-form test of 500x1100 mm test pieces. It conforms to ECE-R43 regulations.

(Annex 3, paragraph 3.1.3)



HEAD-FORM WEIGHT



Spherical head-form made of laminated hardwood with “neck” and crossbeam conforms to ECE-R43 regulations (Annex 3, paragraph 3.1.1)



HEAD-FORM COVER



Replaceable felt cover conforms to ECE-R43 regulations (Annex 3, paragraph 3.1.1)



SUPPORT 500X500



Support for mechanical strength tests according to EN 14449



SUPPORT 900X1100



Flat test piece support for tests according to EN 356.

Cover of the frame lifted with gas cylinder.
